VALVES
WITH THREADED CONNECTIONS:INSTRUMENT PRODUCT SERVICES (IPS) LTD
EXCESS FLOW VALVES ( EFV'S )
PRODUCT RANGE
Due to our broad range of EFV's we are able to offer a product to suit most applications.
Should none of the range below meet your requirements, please contact us with your specification.

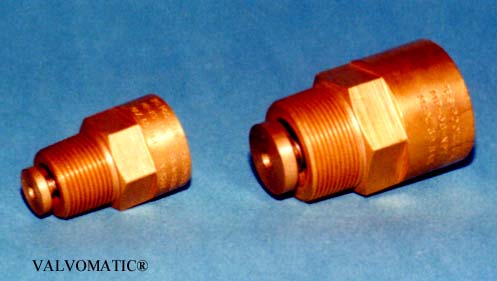

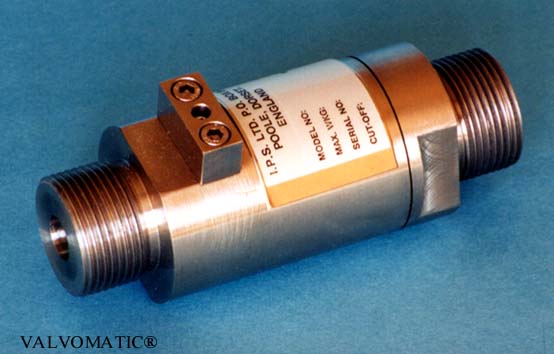

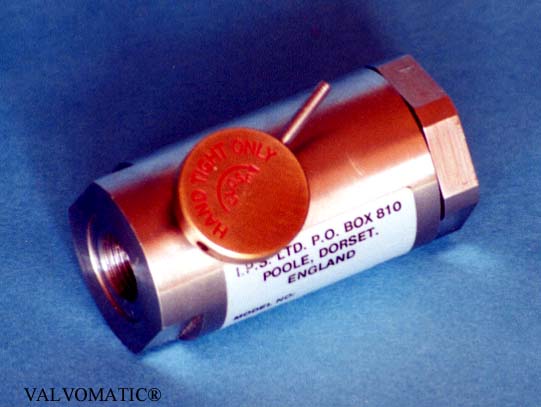

VALVES
WITH THREADED CONNECTIONS:
Size
Range: ¼ inch
2 inch (6mm
50mm)
Pressure
Range: 2 psi
6000 psi (0.15 bar
414 bar)
Connections: Any combination of Male and Female
Materials of Construction:
BODY - C / Steel's, ST / Steel's, Brass, AL / Bronze
INTERNALS - ST / Steel, Brass, AL / Bronze
SEALS - Various / Most Types
VALVES
WITH FLANGED CONNECTIONS:
Size
Range: ¾ inch
14 inch (20mm
350mm)
Pressure
Range: Class 150
Class 1500
Connections: Flanged to ANSI / ASME / DIN / BS and most facing configurations
Materials of Construction:
BODY - C / Steel's, ST / Steel's
INTERNALS - ST / Steel
SEALS - Various / Most Types

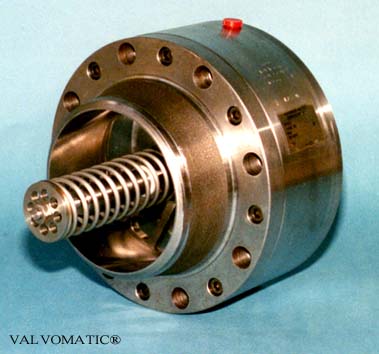

VALVES
OF THE WAFER TYPE:
14
inch (20mm
350mm)Pressure
Range: Class 150
Class 1500
Connections: Single Flange to fit between existing pipeline flanges. To ANSI / ASME / DIN / BS and most facing configurations
Materials of Construction:
BODY - C / Steel's, ST / Steel's
INTERNALS - ST / Steel
SEALS - Various / Most Types
ALTERNATIVE DESIGNS, MATERIALS AND CONNECTIONS
In addition to the above ranges, we also offer alternative designs of our EFV's to meet specific customer requirements. The following are only a few:
*Nace / Sour Service Valves *Duplex ST / Steel Valves *Special Seals for High / Low Temperatures *PTFE / Delrin / Polyethylene Valves *Combination of Welded and Flanged Connections
*Socket / Butt Weld Connections *Special Connections / Materials
